INFRARED TECHNOLOGY

---

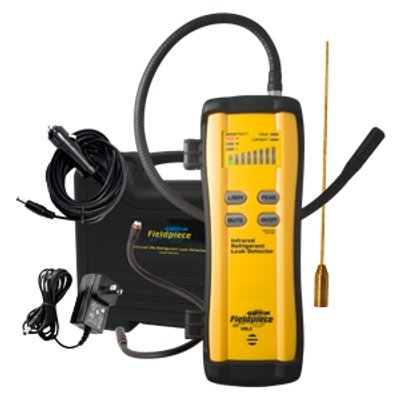

The SRL2 Infrared Refrigerant Leak Detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient. We set out to develop the best refrigerant leak detector for HVACR. We believe the SRL2 is it. And now it comes in kit form in a rugged, blow-mold case with all of the extras. The ergonomic design fits naturally in your hand. The ruggedized construction stands up to abuse most other leak detectors can't handle. The eight-hour battery life lets you work all day before recharging and the included vehicle and wall chargers help you during overtime. The mute and peak functions allow you to work the way you want to work. The magnetic hanger helps keep the detector out of the way when repairing a leak, but visible enough so you won't leave it on the job.

FEATURES
• Triggers on all CFCs, HFCs, HCFCs and blends.
• Sealed sensor.
• Doesn't trigger on oil or moisture like other types of detectors.
• Senses change in refrigerant levels. Works even in contaminated environments.
• Up and running in less than 30 seconds. Some heated elements and corona discharge units take much longer to warm up. UV dyes can take several hours to travel through a running system and can degrade system components.
• Superior - Controlled Sensitivity. Doesn't trigger on nuisance leaks unless in Turbo Mode.
• Rugged / Ergonomic Features. Ruggedized boot and it fit's in your hand.
• Infrared Sensor. Lasts up to 10 years.
• Three Sensitivity Levels. Meets new SAE standards.
• Audible/Visual Alarm. Turn the beep on or off - you decide.
• 8-hour Battery Charge. Work all day on one charge.
• Non-conductive, Sturdy Probe. Stays where you want it.
• Peak / Mute Buttons. Find leaks in noisy environments.
• Magnetic Hanger. Hang the unit while you repair the leak.
• Weighs 14-oz. Tough doesn't have to mean heavy.

TECHNICAL SPECIFICATIONS
• Gases measured: CFC, HFC, HCFC& blends.
• Sensing element: Infrared.
• Response time: Less than 1/2 second to 1 second.
• Sensitivity levels:      HIGH: 0.1 oz/yr & higher.
    (per SAE J2791)     MEDIUM: 0.5 oz/year and higher.
                                  LOW: 1.0 oz/year and higher.
• Accuracy: Exceeds current SAE J2791 standards.
• Calibration: Automatic.
• Warm-up time: <30 seconds.
• Probe Length: 15 inches.
• Battery Type: 7.4VDC(nominal) rechargeable lithium ion.
• Battery Life: Approximately 8 hours (fully charged).
• Patents: 6,791,088 and 7,022,993. Infrared Leak Detector.
